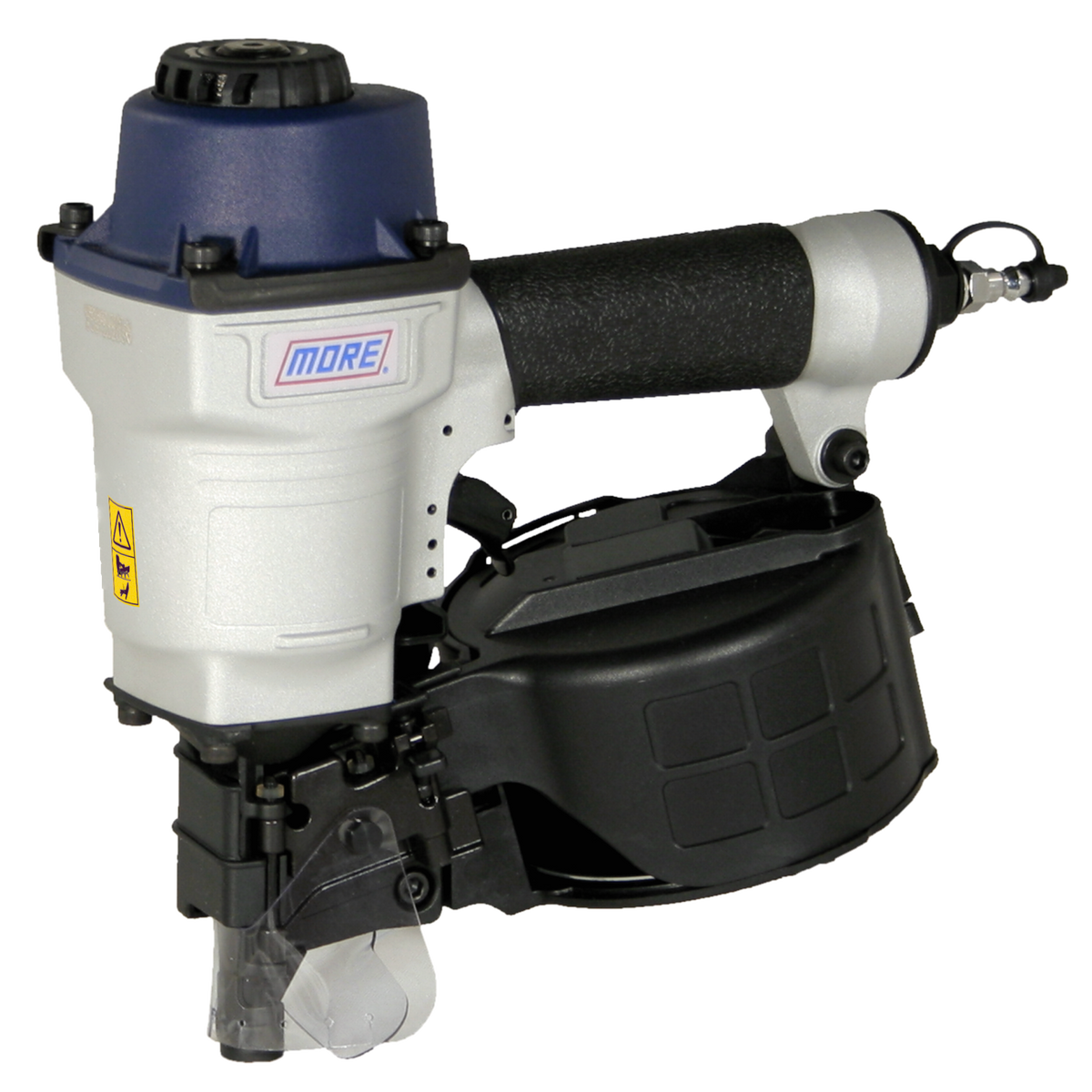

MORE CN23.57 Coil Nailer for Pallet Production 25–57 mm

The MORE CN23.57 is a pneumatic coil nailer designed for pallet manufacturing and industrial wood fastening applications. The tool is compatible with flat wire collated coil nails at a 15–16° angle and supports nail lengths from 25 mm to 57 mm.

The nailer is designed for nails with a shank diameter range of 2.1–2.3 mm and head diameter up to 5.9 mm. It works with CNW 23 and CNW 203 fasteners and supports high-speed fastening operations in pallet production and timber assembly environments.

The contact actuation trigger system allows rapid bump-fire operation for efficient repetitive fastening. The magazine capacity of 350 nails supports continuous production work with reduced reloading frequency.

The compact design and lightweight 2.67 kg construction improve maneuverability in confined spaces and repetitive production tasks. The articulated feeder pawl system is designed to feed nails smoothly into the nose for stable and reliable operation.

Key Features:

• Pneumatic coil nailer
• Suitable for pallet manufacturing
• Compatible with flat wire collated coil nails
• Nail angle 15–16°
• Nail length range 25–57 mm
• Compatible shank diameter 2.1–2.3 mm
• Maximum head diameter 5.9 mm
• Contact actuation trigger system
• Magazine capacity 350 nails
• Compact and lightweight design
• Smooth articulated feeder system
• Compatible with CNW 23 and CNW 203 fasteners

Application & Usage:

Suitable for pallet manufacturing, wooden packaging production and industrial timber fastening applications.

Designed for repetitive high-speed fastening tasks in pallet assembly lines, timber production and industrial woodworking environments. The compact body allows easier handling in confined working spaces and production stations.

Compatible with flat wire collated coil nails for efficient pneumatic fastening operations.
