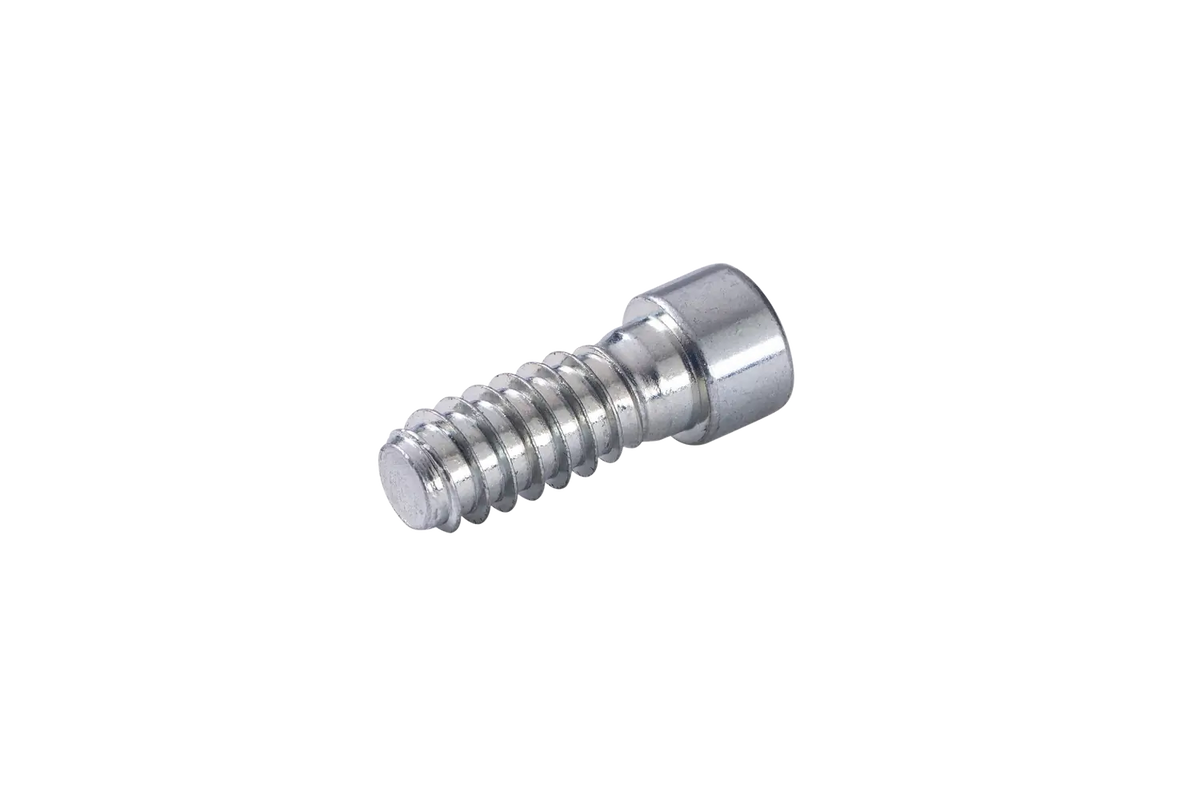

Lamello Cabineo 12 Screw for Cabineo X, 12 mm

Lamello Cabineo 12 screw is a 12 mm screw designed for use with the open-housing Cabineo X furniture connector. It is suitable for connecting carcass corners and fixed shelves while allowing components to be conveniently positioned before final tightening.

In the Cabineo X system, the screw can be pre-installed in the side panel. The cabinet top or shelf is then placed onto the screws and the connection is tightened using a cordless drill and Cabineo bit. This assembly principle simplifies positioning before the joint is fully tightened.

The Cabineo X system uses surface drilling or milling and requires no edge drilling. It can be processed on different CNC machining centres, including 3-axis and nesting machines.

Technical Specifications

• Brand: Lamello
• Product range: Cabineo
• Product: Cabineo 12 screw
• Screw length: 12 mm
• Compatibility: Cabineo X
• Minimum workpiece width: 21 mm
• Minimum material thickness for edge cuts: 12 mm
• Minimum material thickness for surface cuts: 13 mm
• Minimum material thickness for centre wall machining: 24 mm
• Tensile strength in particle board: 770 N
• Tensile strength in MDF: 830 N
• Tensile strength in beech: 1980 N
• Shear strength in particle board: 850 N
• Shear strength in MDF: 1120 N
• Shear strength in beech: 1950 N
• Size: 12 mm

Key Features

• Designed for the Cabineo X furniture connector
• 12 mm length
• Suitable for carcass corners and fixed shelves
• Can be pre-installed in the side panel
• Simplifies positioning of shelves and cabinet tops
• Tightened with a cordless drill and Cabineo bit

Applications & Usage

The Cabineo 12 screw is used with the Cabineo X housing for panel-based carcass furniture. The screw can be pre-installed in the side panel so that a shelf or cabinet top can be positioned on it before final tightening.

Suitable applications include cabinets, kitchen furniture, built-in cupboards, wardrobes, shelving systems and shopfitting furniture.

Advantages

• Compatible with the Cabineo X system
• Simplifies component positioning during assembly
• Suitable for fixed shelves and carcass corner joints
• Enables fast tightening with a cordless drill
• Supports the surface-machining installation principle of Cabineo X
• Suitable for professional carcass furniture production

Applications / Industries

• Furniture manufacturing
• Carcass furniture
• Kitchen furniture
• Built-in cupboards
• Wardrobes
• Fixed shelves
• Open shelving
• Shopfitting
• CNC furniture production
