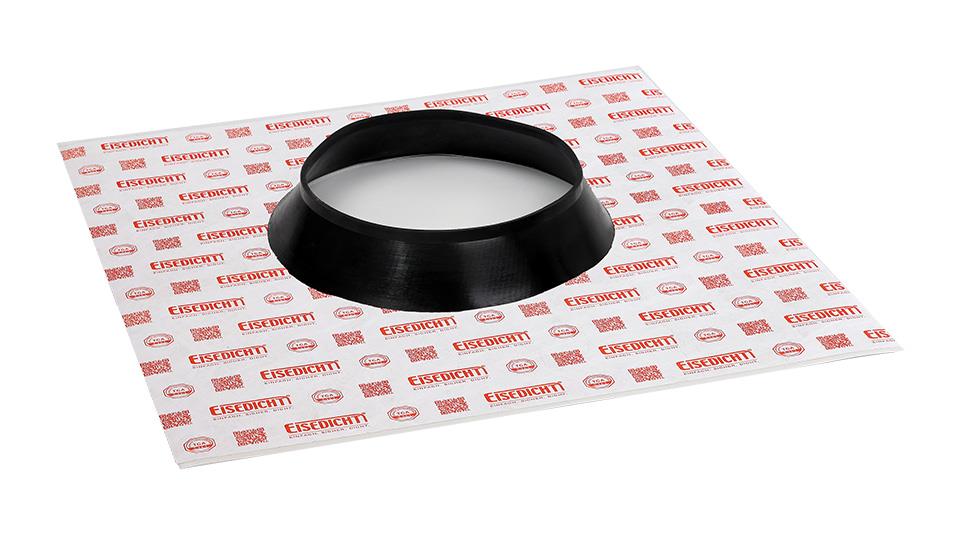

EISEDICHT RGD250 Tyvek® Pipe Sealing Grommet 250–270 mm – EPDM, 580 × 580 mm

EISEDICHT RGD250 Tyvek® pipe sealing grommet 250–270 mm is a one-piece airtight sealing grommet designed for quick and airtight sealing of pipe penetrations at airtight and windtight building layers. It is designed according to DIN 4108-7 and DIN 18015-5.

The grommet features a highly flexible 60 mm high EPDM anti-kink sleeve that provides a permanently flexible seal around the pipe. Integrated strain relief helps reduce mechanical loading on the sealed penetration.

A large 580 × 580 mm Tyvek® adhesive collar is self-adhesive and tear-resistant, providing a durable connection to the airtight layer. The collar uses an extremely strong polyacrylate adhesive.

The RGD250 Tyvek® pipe sealing grommet has a specified temperature resistance from -30 °C to +100 °C and can be installed from +5 °C. It is suitable for indoor and outdoor applications, UV-resistant and halogen-free. The product is GTÜ tested and carries the Passive House seal.

Manufacturer: Eisedicht. Article number: 0090. The specified carton quantity is 4 pieces.

Key Features

• EISEDICHT RGD250 Tyvek® pipe sealing grommet

• Diameter: 250–270 mm

• 60 mm high EPDM anti-kink sleeve

• Integrated strain relief

• Adhesive collar: 580 × 580 mm

• Self-adhesive and tear-resistant Tyvek® collar

• Extremely strong polyacrylate adhesive

• Temperature resistance: -30 °C to +100 °C

• Suitable for indoor and outdoor applications

• UV-resistant

• Halogen-free

• Installation temperature from +5 °C

• According to DIN 4108-7

• According to DIN 18015-5

• GTÜ tested

• Passive House seal

• Article number: 0090

Applications & Usage

The EISEDICHT RGD250 Tyvek® pipe sealing grommet is intended for airtight sealing of 250–270 mm pipe penetrations at airtight and windtight building layers.

The highly flexible 60 mm EPDM sleeve forms a permanently flexible seal around the pipe, while the integrated strain relief helps protect the sealed connection from mechanical loading. The large self-adhesive Tyvek® collar provides a durable connection to the airtight layer.

Typical applications include pipework and similar large-diameter penetrations in interior and exterior building-envelope construction.

Advantages / Benefits

• Designed for 250–270 mm pipe penetrations

• Highly flexible 60 mm EPDM sleeve

• Maintains a flexible seal around the pipe

• Integrated strain relief

• Large 580 × 580 mm Tyvek® adhesive collar

• Tear-resistant self-adhesive collar

• Strong polyacrylate adhesive

• Suitable for indoor and outdoor applications

• UV-resistant and halogen-free

• GTÜ tested

• Passive House seal

Application Industries / Use Cases

• Pipe penetration sealing

• Airtight construction

• Windtight construction

• Building envelope construction

• Pipework installations

• Interior construction

• Exterior construction

• New-build and renovation projects
