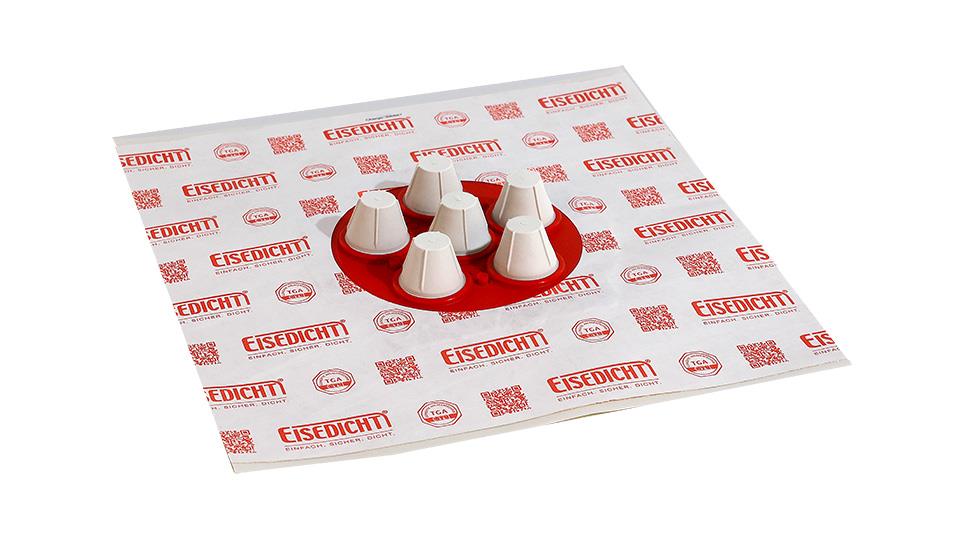

EISEDICHT M-Tec6 Tyvek® Multi-Pipe and Cable Sealing Grommet – 6 × 16–25 mm

The EISEDICHT M-Tec6 Tyvek® airtight sealing grommet is a self-adhesive multi-penetration sealing solution designed for airtight sealing of up to 6 cables or pipes passing through airtight and windtight building membranes. It is suitable for professional electrical installations, building envelope sealing and construction work.

Manufactured using a two-component production process, the one-piece grommet features six factory-sealed, pierceable, permanently flexible sleeves with integrated strain relief. Each sleeve accommodates a line diameter of 16–25 mm and has a height of 28 mm.

The 320 × 320 mm Tyvek® adhesive collar is tear-resistant and coated with a strong polyacrylate adhesive for attachment to the airtight layer. The product is water-repellent, UV-resistant and halogen-free, with a temperature resistance of -30 °C to +100 °C. Installation is possible at temperatures from +5 °C.

The grommet is intended for indoor and outdoor use on vapour barriers, vapour control membranes and roofing underlay membranes. It is designed for airtight installations in accordance with DIN 4108-7, DIN 18015-5 and the requirements referenced in GEG 2020.

Key Features

• Six independently pierceable sealing sleeves for cable and pipe penetrations

• 6 × 16–25 mm penetration diameter

• 28 mm high permanently flexible anti-kink sleeves

• Integrated strain relief

• 320 × 320 mm self-adhesive tear-resistant Tyvek® collar

• Strong polyacrylate adhesive

• Water-repellent, UV-resistant and halogen-free

• Temperature resistance from -30 °C to +100 °C

• Minimum installation temperature +5 °C

• Allows subsequent adjustment or pulling of installed cables

• Manufacturer: EISEDICHT

• Article number: M0021

• Packaging: 4 pieces per carton

Applications & Usage

The EISEDICHT M-Tec6 multiple sealing grommet is used for sealing bundles of electrical cables, telephone cables, antenna cables and conduits passing through airtight or windtight building layers.

It is suitable for vapour barriers, vapour control membranes and roofing underlay membranes in both indoor and outdoor applications.

For installation, an opening corresponding to the cable or pipe diameter must be prepared in the membrane. The appropriate sleeve is pierced, the line is passed through and the adhesive collar is bonded according to the manufacturer's instructions.

Advantages / Benefits

• Seals up to six cable or pipe penetrations with one grommet

• Reduces the need for separate sealing collars for individual lines

• Permanently flexible sleeves accommodate line movement

• Integrated strain relief supports secure cable positioning

• Factory-sealed sleeves can be pierced as required

• Tear-resistant adhesive collar supports durable membrane connections

• Helps prevent uncontrolled air exchange through penetrations

• Suitable for indoor and outdoor sealing applications

• Allows subsequent cable adjustment

Application Industries / Use Cases

• Electrical installation

• Timber construction

• Building envelope airtightness

• Roofing

• Building renovation

• Energy-efficient construction

• Cable and conduit installation

• Vapour barrier and membrane sealing
