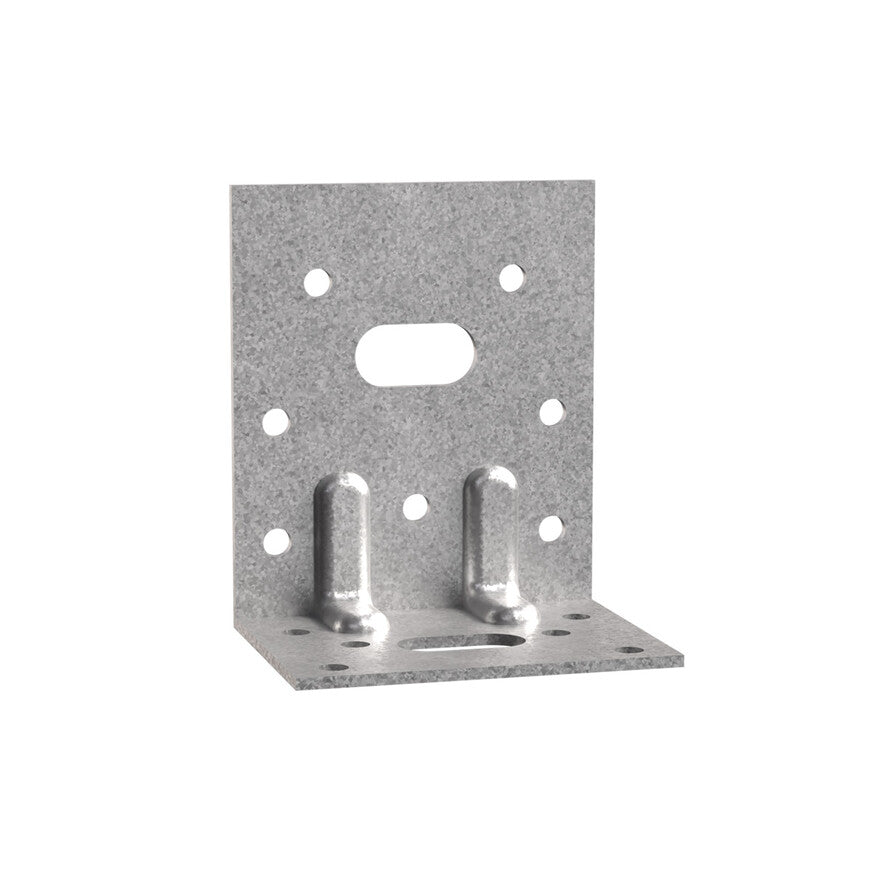

Simpson Strong-Tie ER Reinforced Angle Bracket for Structural Timber Connections

The Simpson Strong-Tie ER reinforced angle bracket is designed for structural timber connections in timber frame buildings, wood-frame houses and general construction applications. The reinforced design provides reliable load transfer and stability in load-bearing connections.

Manufactured from galvanized steel S250GD + Z275 according to NF EN 10346, the bracket offers corrosion protection and durability for indoor and protected outdoor applications. The reinforced geometry improves the performance of the connector in timber-to-timber, timber-to-concrete and timber-to-steel connections.

ER angle brackets are suitable for connecting solid timber, glued laminated timber, composite lumber, roof trusses and structural profiles. They are commonly used where secure and durable structural fastening is required.

Key Features:

• Reinforced structural angle bracket
• Manufactured from S250GD + Z275 galvanized steel
• Suitable for timber, concrete and steel structures
• Designed for load-bearing connections
• Suitable for timber-to-timber and timber-to-concrete assemblies
• Compatible with nails, screws, bolts and anchors
• Corrosion-protected galvanized finish
• Suitable for framing and structural applications

Application & Usage

The ER reinforced angle bracket is used for structural connections in timber construction and building projects.

Typical applications include:

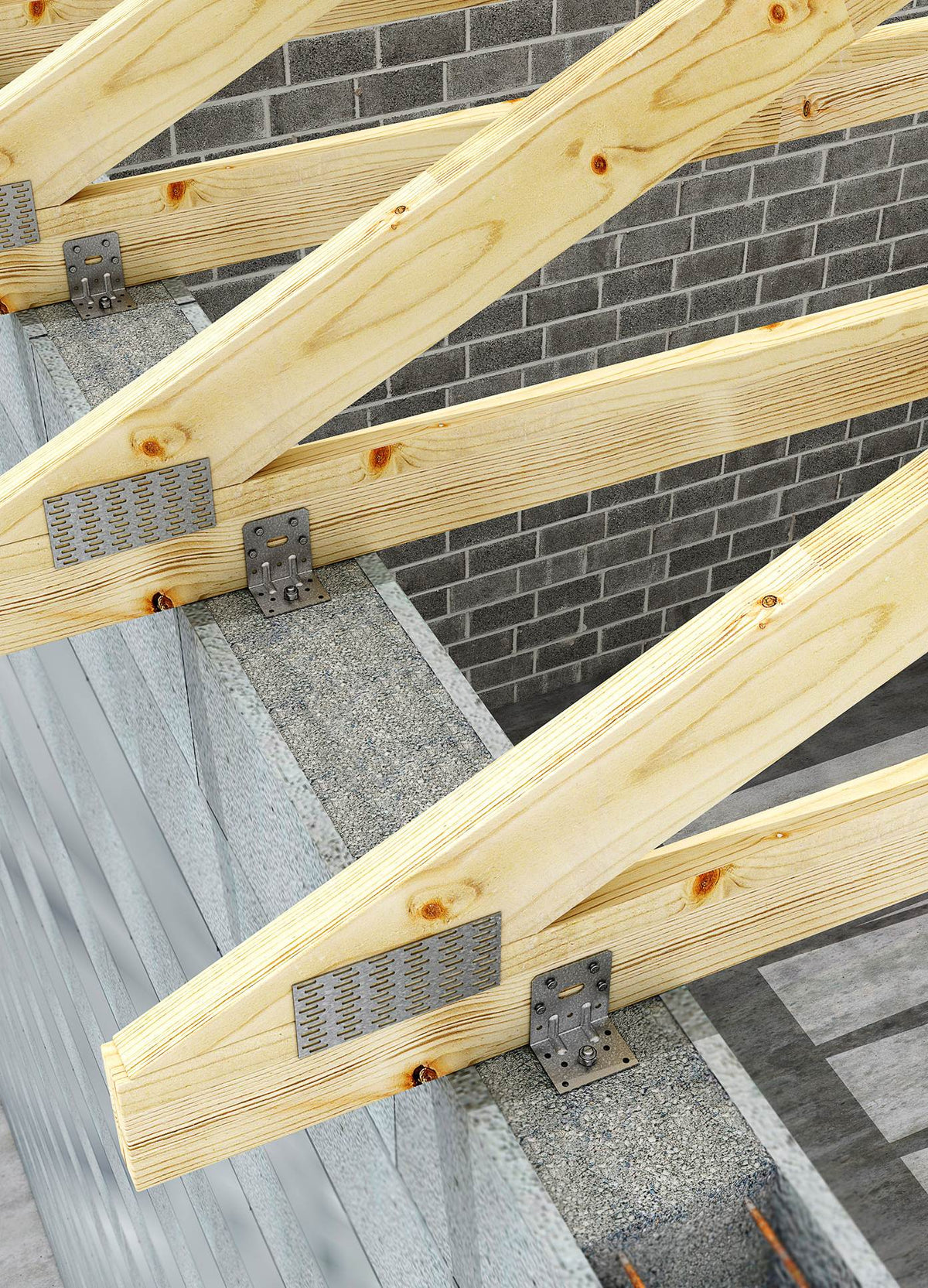

• Timber frame construction
• Wood-frame houses
• Roof trusses
• Rafter connections
• Cantilever supports
• Headers and beams
• Cladding structures
• Timber-to-concrete connections
• Timber-to-steel connections

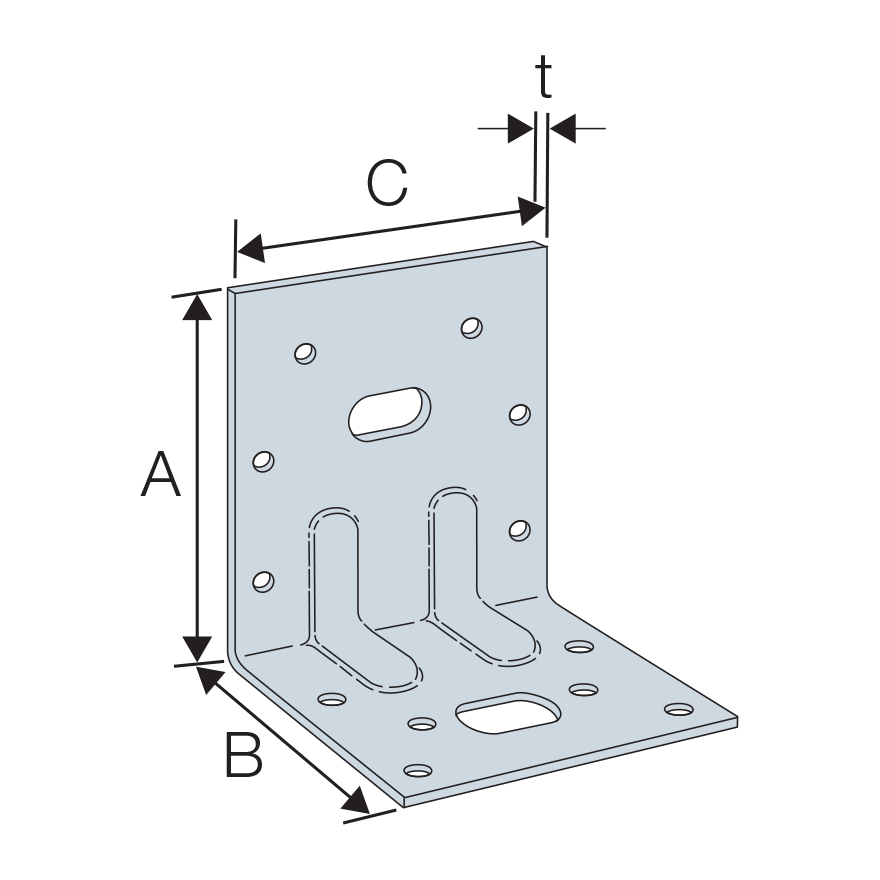

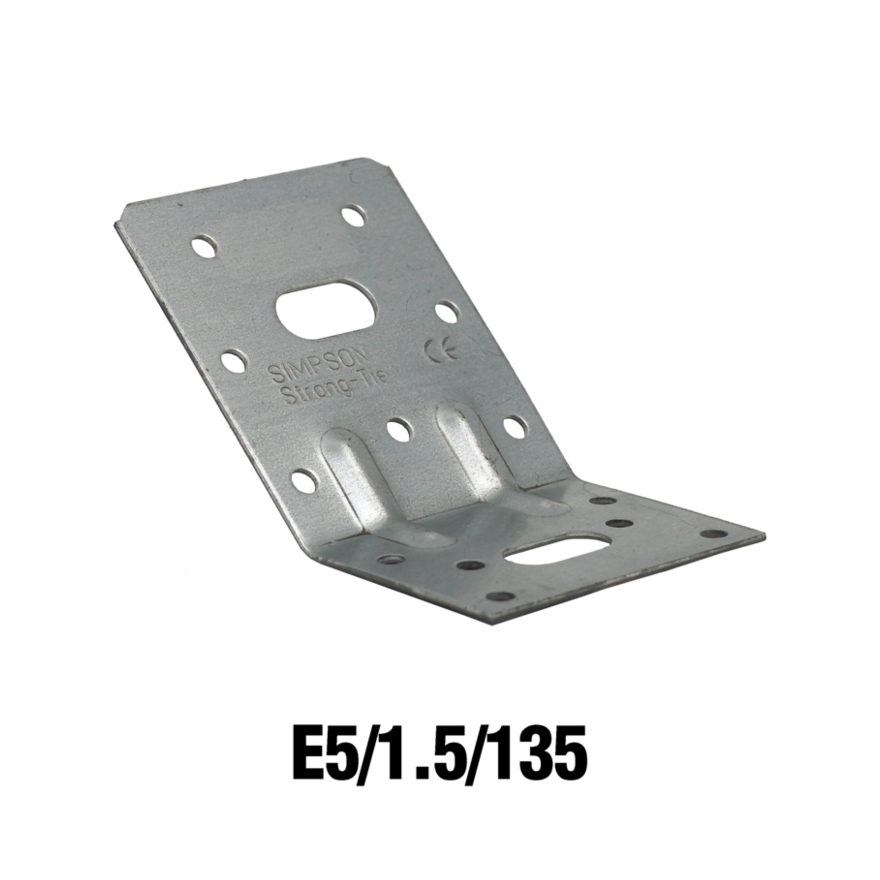

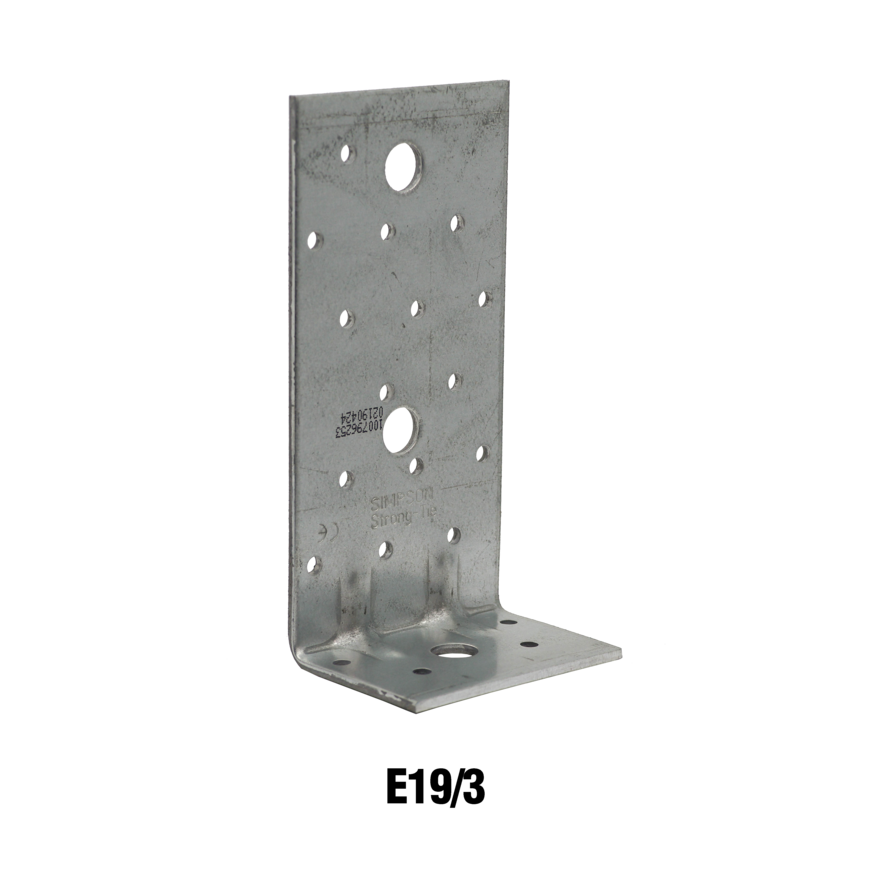

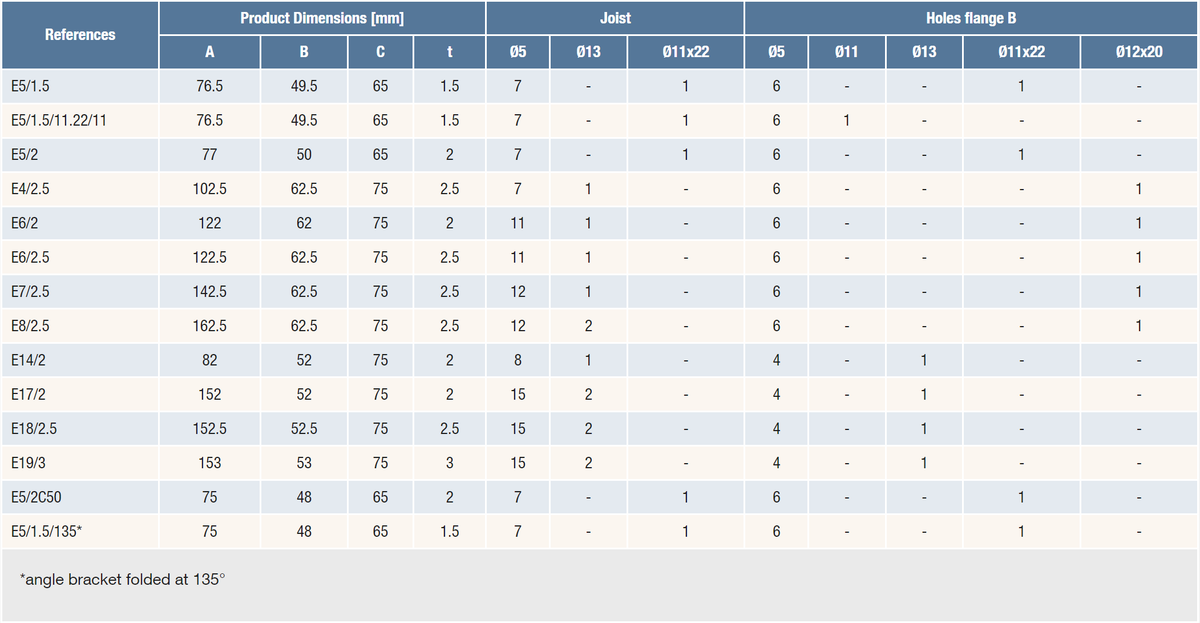

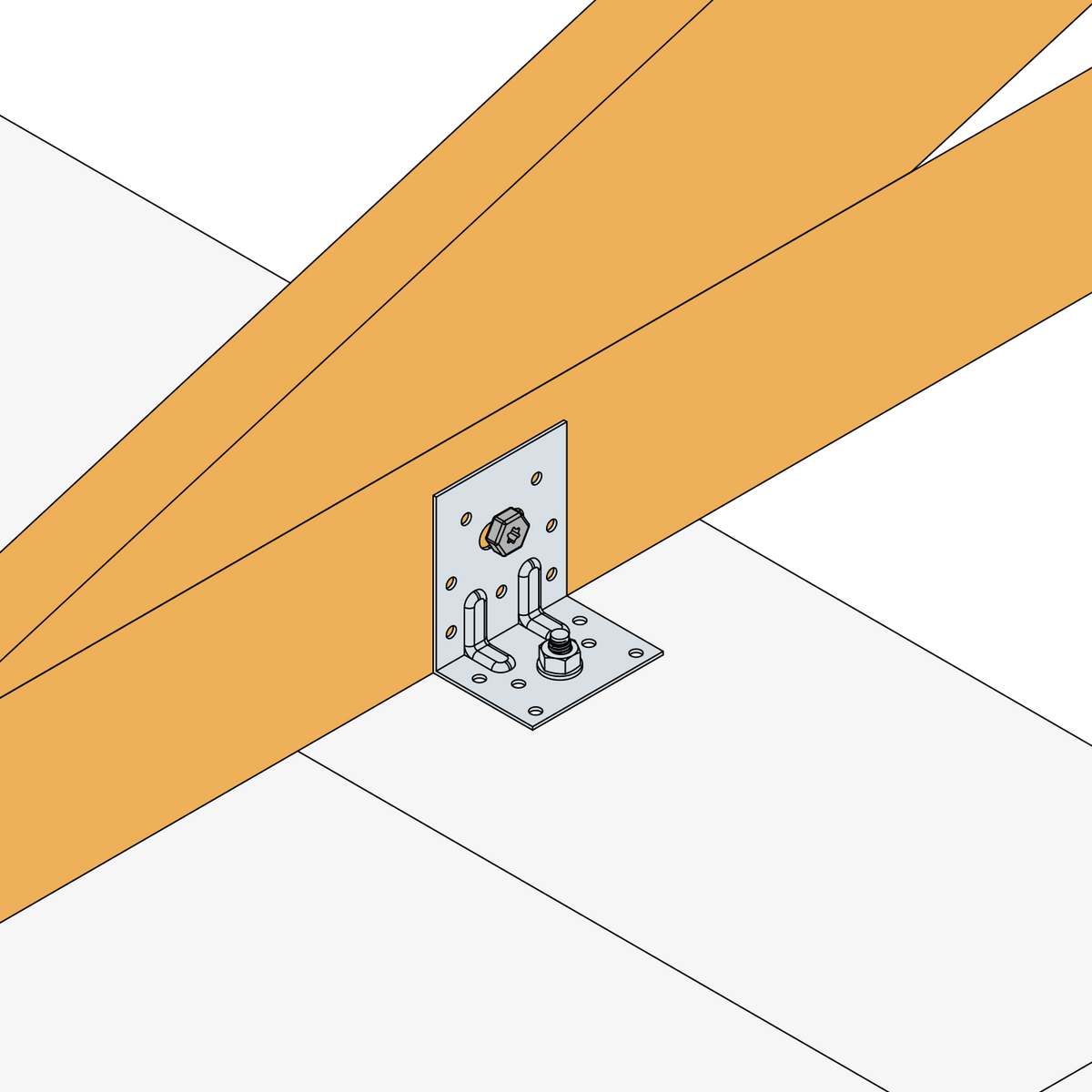

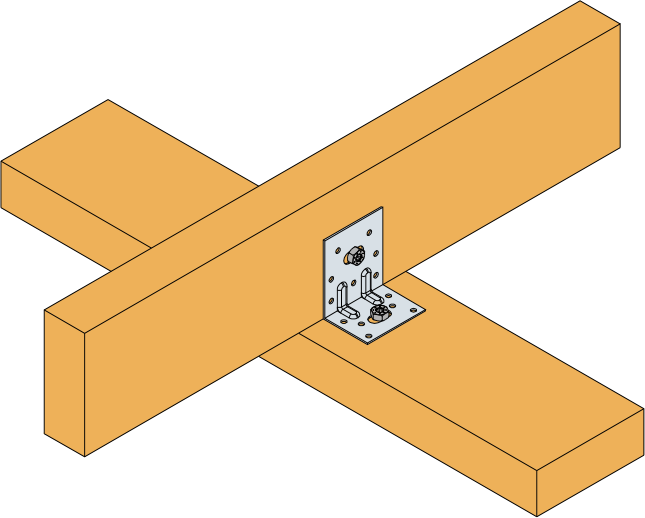

Installation

On timber:

• CNA annular ring-shank nails 4.0 x 35 mm or 4.0 x 50 mm
• CSA connector screws 5.0 x 35 mm or 5.0 x 40 mm
• Bolts
• LAG screws

On concrete:

• Mechanical anchors
• Chemical anchors with threaded rods

On steel:

• Bolts

The connector may be installed using full or partial fastening according to structural design requirements.
